Conveyor Parts

Electro-hydraulic Brake drum

Font Size: [Big][Mid][Small] 2014-12-8    Views: 1121

Introduction

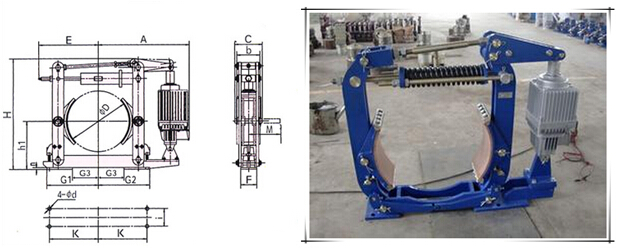

YW series hydraulic brake drum is mainly used for lifting, transport, metallurgy, mining, ports, construction of mechanical structures, mounting dimensions according to DIN15435and JB/T7021-2006 standard, technical requirements according to JB/T6404-2006 standard.

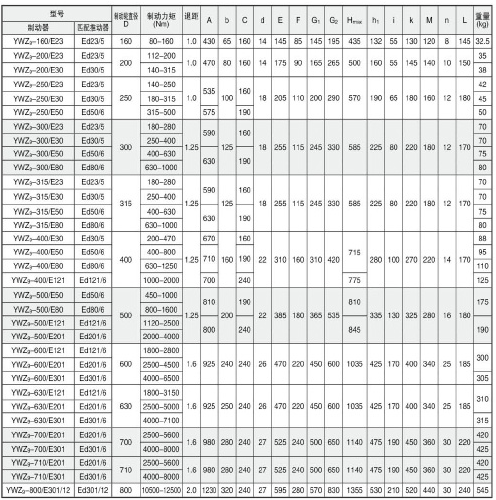

Technical parameters
