Conveyor Parts
Introduction

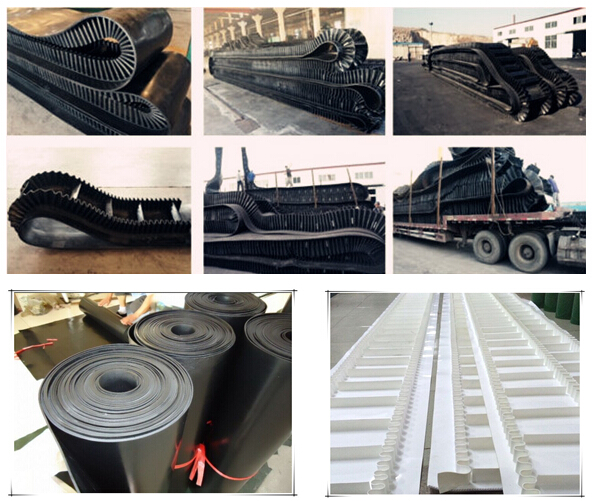

Conveying belt is widely applied in chemical, mining, steel industries. Rubber belt are divided by cotton belt, nylon belt, steel core belt, EP belt. For light industries, PVC and PU belts are more popular. To satisfy inclined conveying demand, rubber belts can be with sidewall and cleat. The surface patterns include V-shape chevron, herringbone. For some special usage, we can supply oil-resistance, hot-resistance, anti-abrasive, anti-cold, oil resistance and so on.
Technical parameter

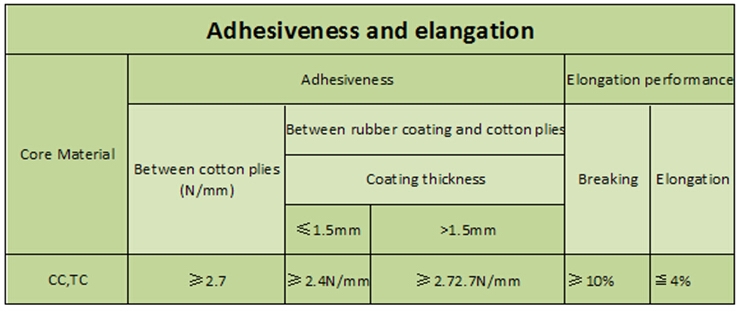

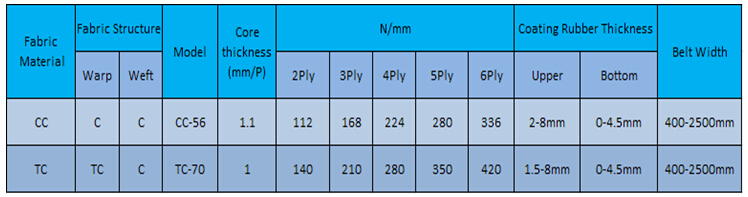

Cotton belt

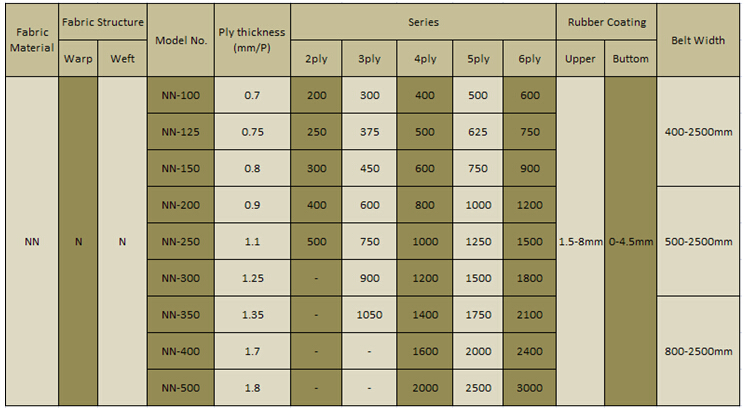

Nylon Belt

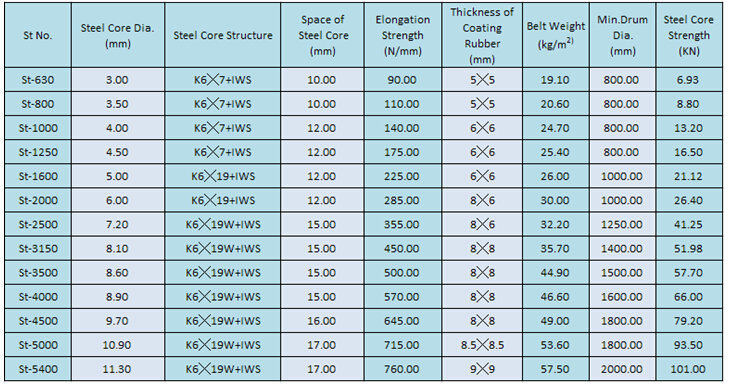

Steel Core Belt

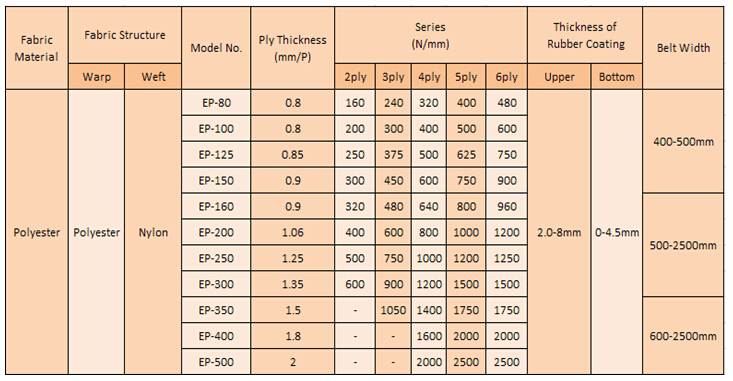

EP Belt
PVC Belt
1)Structure: polyester cloth lining and PVC coating
2)Working Temperature: -10o---+80o
3)Color: red, yellow, green, blue, gray, white, black, dark green and blue, transparent color
4)Thickness: 0.8mm-11.5mm
5)Quantity of ply: one lining and one coating, two lining and one coating, one lining and two coating, two lining and two coating, two lining and three coating, three lining and three coating, three lining and four coating, four lining and four coating, four lining and five coating, five lining and five coating.
