Introduction

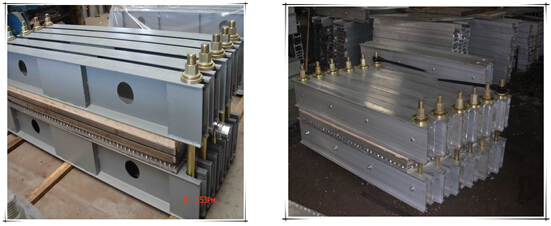

Belt vulcanizer is applied to connect belt by electric heating, it can be made of aluminum alloy, with features of light, heating quickly and equally, easy cooperation.
Features
1)Vulcanizing Pressure:1.5-2.45MPA
2)Vulcanizing Temperature: 145℃
3)Vulcanizing plate temperature difference:-+3℃
4)Heating time:≤50minutes up 145℃
5)Power:350V,50HZ;Output:36KW
6)Adjustable range:temperature:0-200℃;time:0-59min
7)Space between upper and bottom heat plate after 0.8Mpa:≤0.5mm.

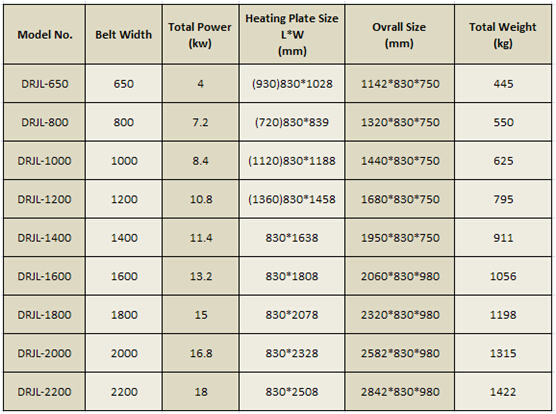

Technical Parameter
