Product 原有

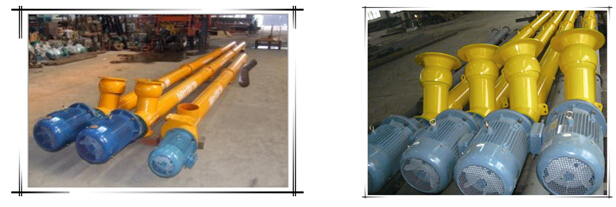

Conveyor System
Introduction
It is applied to transport materials of powder, granular, small particles in chemical, food, agriculture industries. The flowing quantity can be controlled by adjusting rotate speed.
It mainly contains three parts: pipe body, feeding and discharge parts, driving part. The electromotor drives the reducer, connect on spiral axis by coupling. Under the action of spiral blade, the materials are outputted evenly while the materials go into inlet.
Technical Parameter
1.The temperature of conveying materials: usually lower than 200 oC.
2.It is not suitable for perishable, adhesive, easy-caking materials.
3.Motor Power: 4.0KW, 5.5KW
4.Pipe Diameter:160mm, 200mm, 250mm, 320mm
5.Capacity: 20-30t/h, 30-50t/h

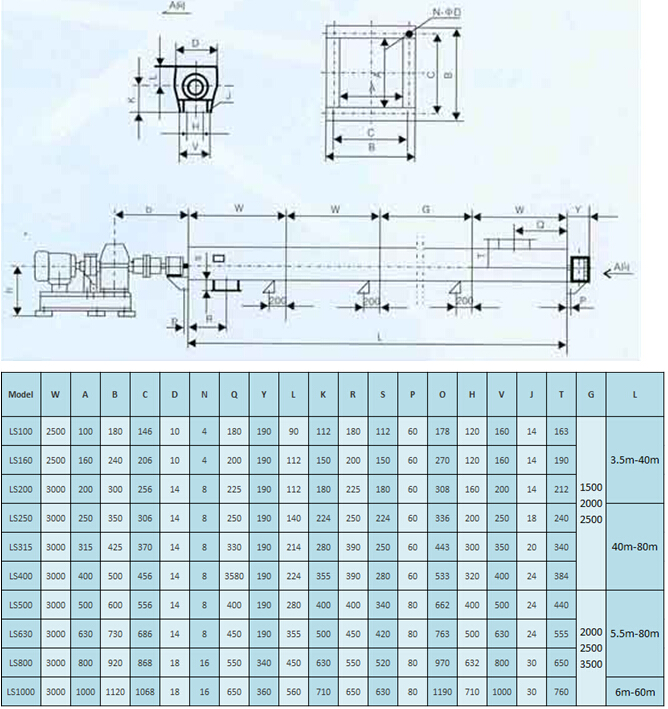

Installation Size
