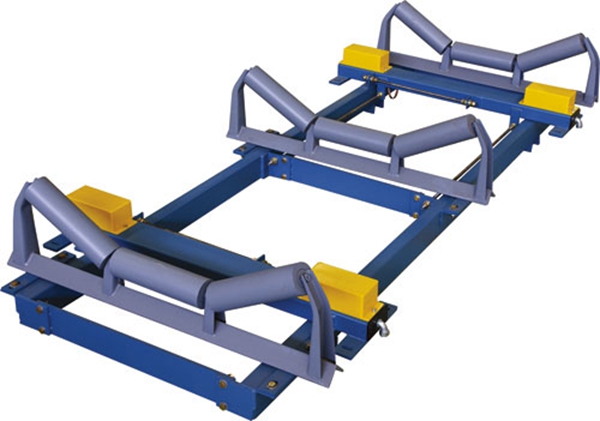

Convey idler roller
Introduction
Idler rollers are very important part of belt conveyor, accounting for around 25% of total cost. So the quality of idler rollers is a key factor to the service life of the belt conveyor.
Characteristics
1)Size: DTII(A): diameter: 63.5mm, 76mm, 89mm, 108mm, 133mm, 159mm;CEMA:diameter: 4”, 5”, 6”, 7”, 8”, roller length can be customized.
2)Type: Carrying trough or flat idler, Impact trough or flat idler, Carrying training idler(trough or flat), Return Idler.
3)Material: carbon steel, stainless steel, nylon, ceramic, HDPE.
4)Bearing: 6203/C4 for Φ17mm shaft, 6204/C4 for Φ20mm shaft, 6205/C4 or 6305/C4 for Φ25 shaft, 6306/C4 for Φ30 shaft.
5)Sealing: multi-stage labyrinth seals achieve waterproof and dust
proof.
6)Trough Angle: 10°, 20°,30°, 35°, 45°.
7)Standard: DTII(A), CEMA.
35° Trough roller< DTII(A) >
35°Impact Trough Roller< DTII(A) >
35° Trough roller< CEMA Class B>
35° Impact Trough Roller< CEMA Class B >
