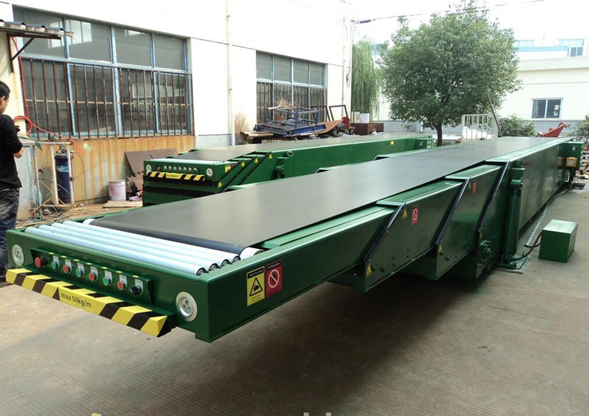

Truck or Container Conveyor

Introduction

Roller conveyor is suitable for conveying types of cartons, cases, bags, pallets, etc. Roller conveyor can be divided into dynamic roller line and non-powered roller line. According to the layout, there are horizontal transportation roller line, sloping transportation roller line and turning roller line.

Characteristics and Specifications

1.Inner width of roller line: 200mm, 300mm, 400mm, 500mm, 600mm, 700mm,800mm,1000mm,1200mm; Turning radius of turning roller line: R300, R600,R900,R1200.

2.Roller diameter: Φ38, Φ50, Φ60, Φ76, Φ89.

3.Conveying speed: 0.5-30m/min.

4.Main Parts: driving roller, ground bracket, steel rack, motor and speed reducer or motorized drums.

5.Material: frame and bracket, carbon steel, stainless steel, and      aluminium alloy; roller: carbon steel with zinc plate or rubber coating, stainless steel.

6.Driving way: single chain, double chain, O-belt, synchronous belt

To customize the roller conveyor, please confirm the following parameters.

1)Description of conveying packages, such as weight, size, bottom shape.

2)Conveyor height, length, inner width, turning radius.

3)Requirement of working environment.

4)Conveyor speed and your national voltage.

5)Other special demands.
