Femail thread solenoid water valve

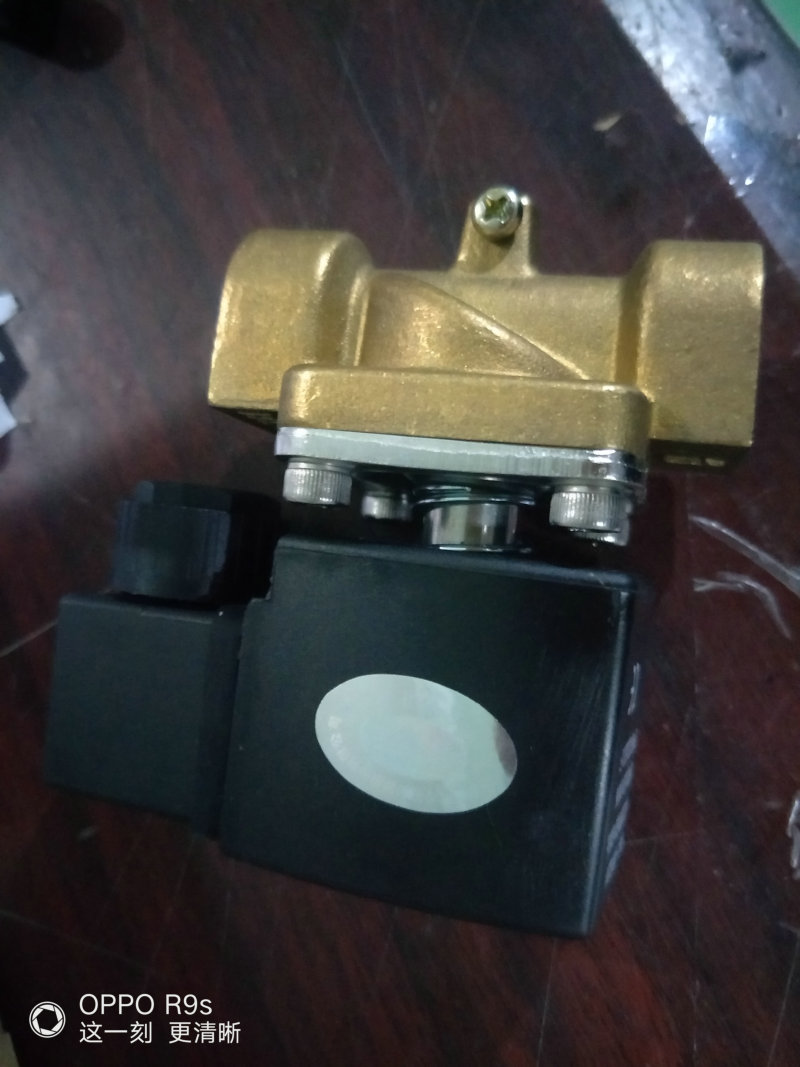

■ Introduction
SV-G series solenoid valves can be used as actor of automatic system in water supply system, fire control system, and water spray system in dirty proofing or agricultural. They also can be used for pneumatic hydraulic and food machine. Solenoid valves use full-closed magnetic coil and DIN international standard electric plug, so it is characterized by its good insulation, waterproof, moisture proof, anti-vibration and corrosion resistance.
■ Operating principle
While energized in coil, the electromagnetic power opens the small orifice. Then the pressure in upside of valve reduced, so the pressure difference between both side of diaphragm happen and lead to diaphragm lift to open the main orifice. While de-energized in the coil, plug stem will drop and close the small orifice because of spring force and its weight. The flow media enters into upside of diaphragm through throttle hole, then pressure in both side of diaphragm balances, then the diaphragm will drop and close the main orifice.

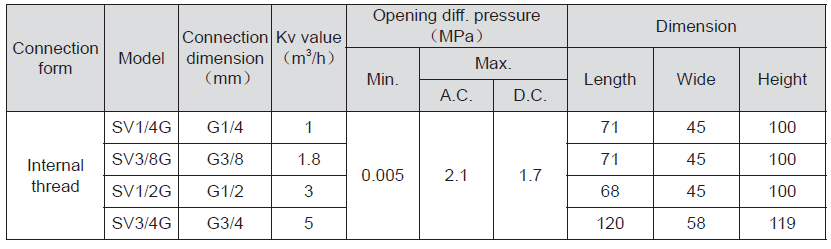

■ Type ＆ data
The Kv value is the water flow in m3/h at a pressure drop across valve of 0.1MPa,ρ=1000 kg/m3
Letters after the model: “G” means internal thread,

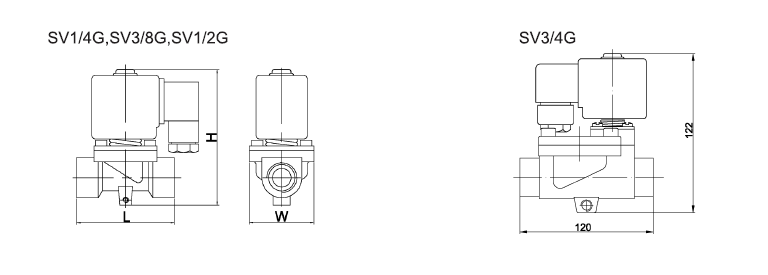

■ Dimension (Unit: mm)
