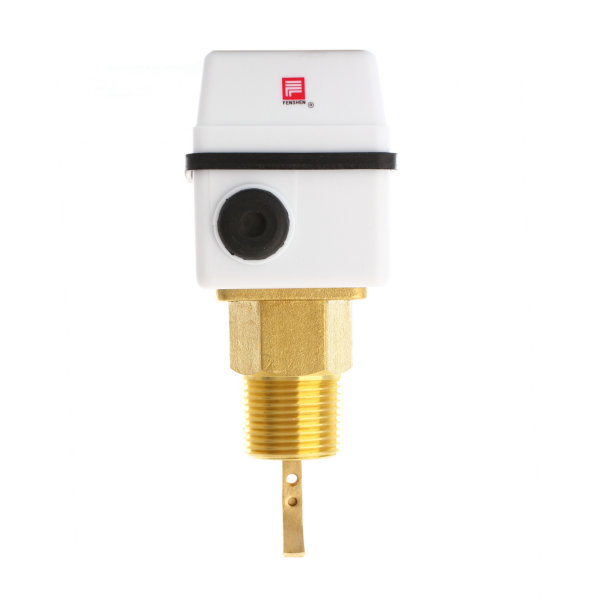

流量开关FSF50P-1 4

■ Introduction

FSF50P series flow switches are used in measuring and controlling the flow of the liquid in the pipe, such as water, alcohol, etc., as well as in the places where it needs chain effect or cutout protection.

FSF series flow switches have SPDT switch, full-sealing structure as its shell, and stainless steel as its inside components, which can assure its use in any conditions.

FSF-A series flow switches are used for caustic fluid liquid, the materials of FSF-A in contact with the medium is stainless steel.

■ Technical data

Ambient temperature: -20 ～ +60℃      Max. liquid pressure：1.5MPa

Cable connection：the cable entry can be used for dia.14mm

 Liquid temperature: -25 ～ +110℃ T   Level of protection: IP55/IP65

■ Electrical data

■ Type & data (Unit: MPa)

■ Dimension of the paddle (Unit: inch)

■ Flow rates

※　　　A stands for 2" flow paddle is trimmed of flow value to match the pipe size as per <Flow paddle trim template>.

※※　　B stands for 3" flow paddle is trimmed of flow value to match the pipe size as per <Flow paddle trim template>

※※※ ★ stands for the flow value of 1"+2"+3"+6". 4" and 5" is trimmed of flow value from 6" flow paddle to

match the pipe size as per <Flow paddle trim template>.

※※※※ Above flow value only apply to standard water pipelines.
